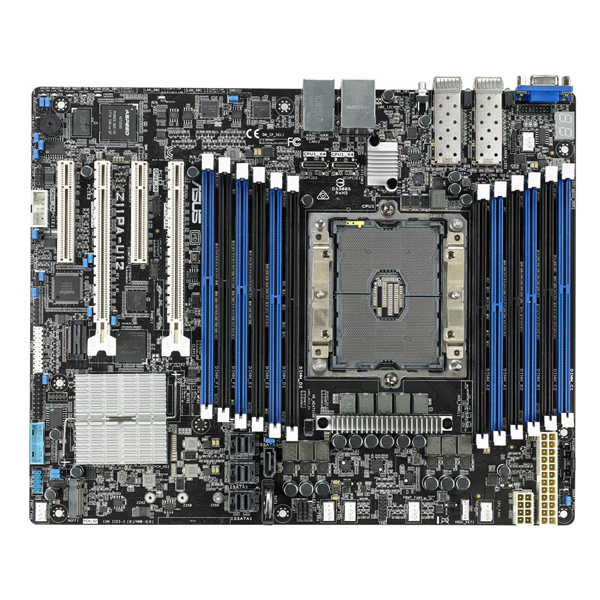

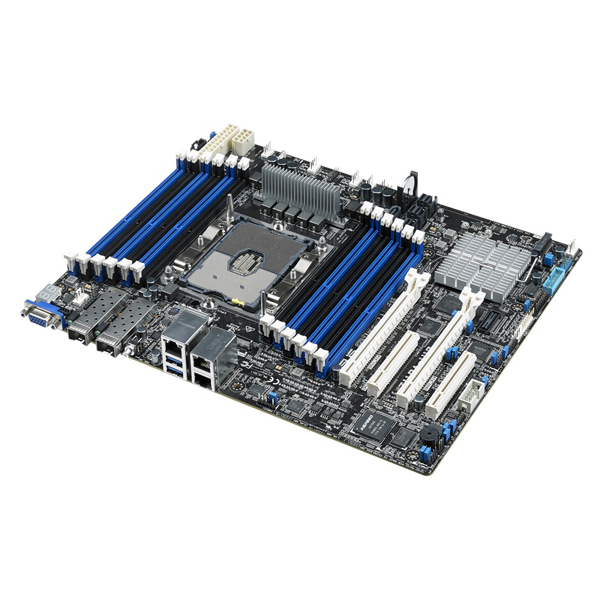

Mainboard Server ASUS Z11PA-U12/10G-2S

Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : Single Channel DDR4 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : Single Channel DDR4 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Total Slot : 4 Slot Location 1 : PCI-E x8 (Gen3 X4 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied

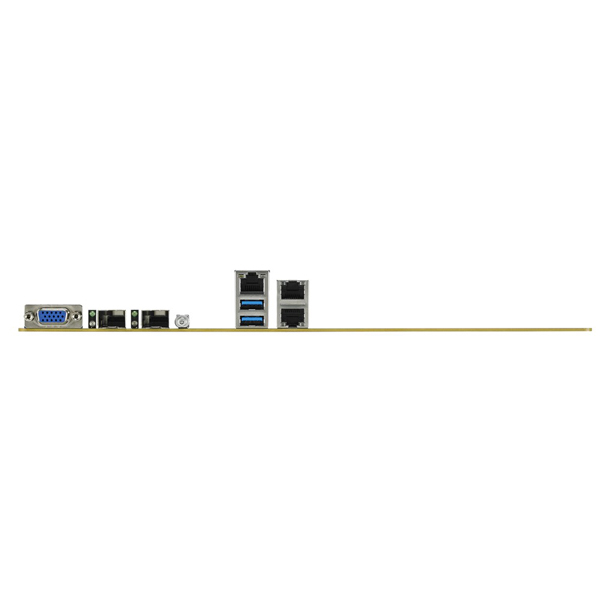

2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED

1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 6 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x M.2 Connector , NGFF Type : 2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED

ATX (12"x9.6", 305mm x 244mm)

36 tháng
