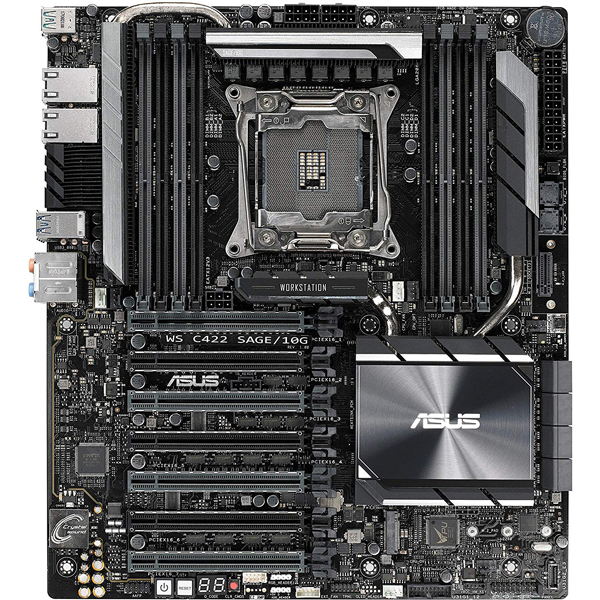

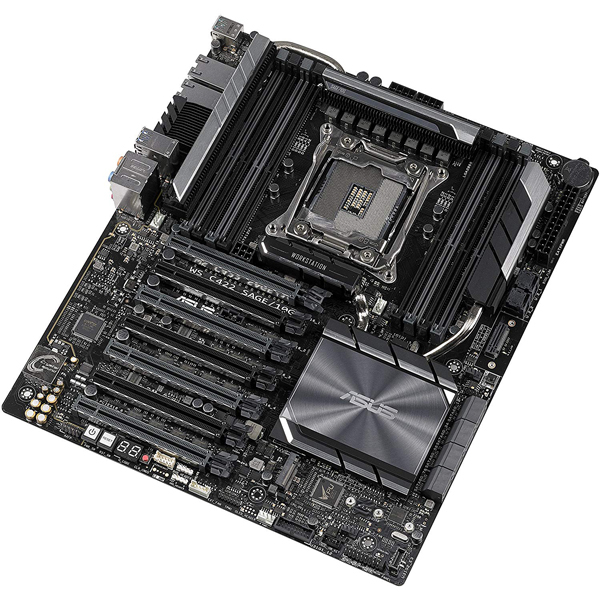

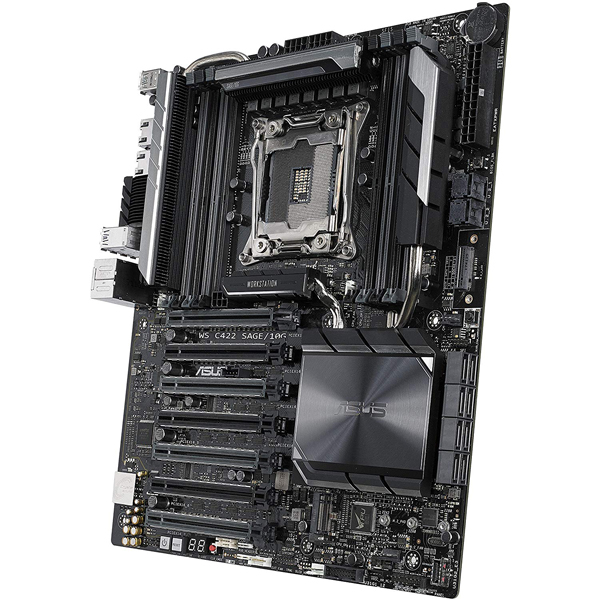

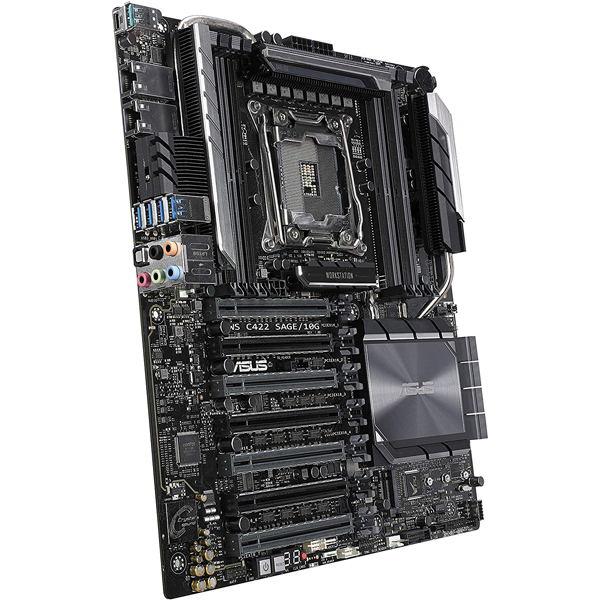

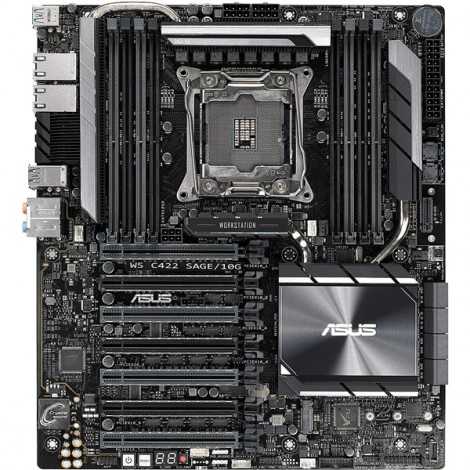

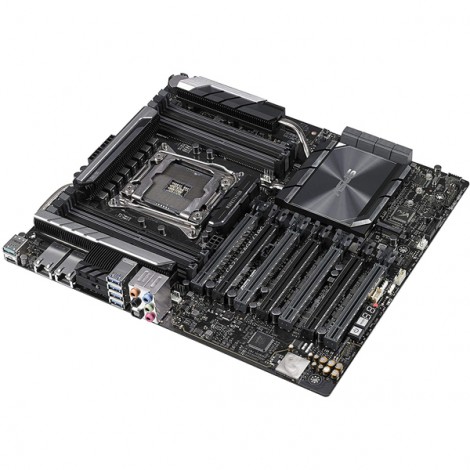

Mainboard Server ASUS WS-C422 SAGE/10G

Mã Sản phẩm: tnm3557

Liên hệ

Đang cập nhật

Mục	Mô Tả Chi Tiết
CPU	Intel® Socket 2066 Processors Supports Intel® Virtual RAID on CPU (VROC) Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
RAM	8 x DIMM, Max. 1024GB, DDR4 2933(O.C.)/2666/2400/2133 MHz RDIMM, LR-DIMM Memory 1 Quad Channel Memory Architecture Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
Khe cắm mở rộng	Intel® C422 Chipset 7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) *2
Chipset	Intel® C422
Giao tiếp	Intel® C422 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
Kích thước	CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
Kết nối mạng LAN	Intel® X550-AT2 2 x 10 Gigabit LAN
Âm thanh	Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality

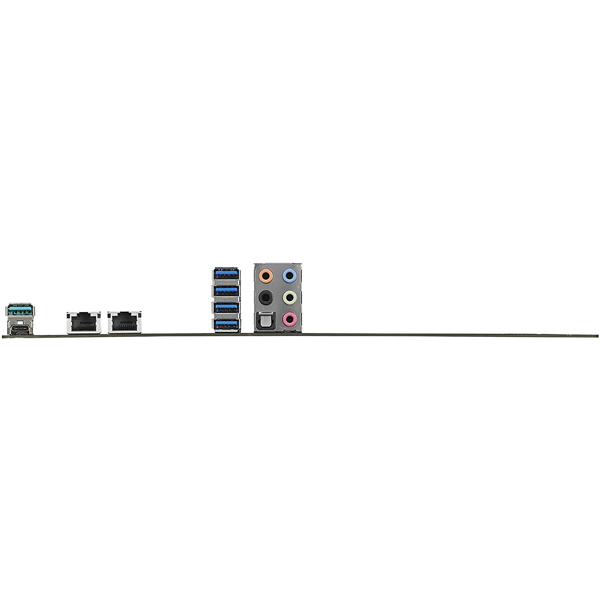

Cổng I/O phía sau	2 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)Type-C 1 x Optical S/PDIF out 1 x 8-channel Audio I/O 4 x USB 3.1 Gen 1 (blue)
Cổng I/O ở trong	1 x Aura Addressable Strip Header(s) 2 x U.2 port 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® button(s) 1 x Water Pump header (4-pin) 1 x System panel connector 1 x Thermal sensor connector 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x M.2 Fan Header
Bảo hành	36 tháng
Loại Ram	8 x DIMM, Max. 1024GB, DDR4 2933(O.C.)/2666/2400/2133 MHz RDIMM, LR-DIMM Memory 1 Quad Channel Memory Architecture Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
