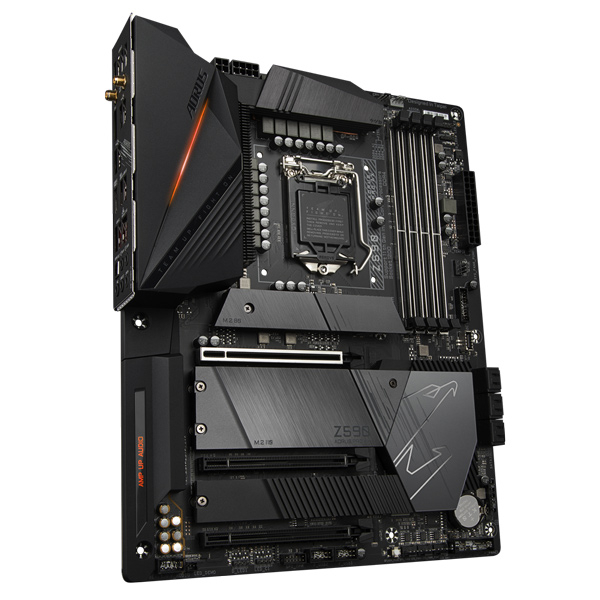

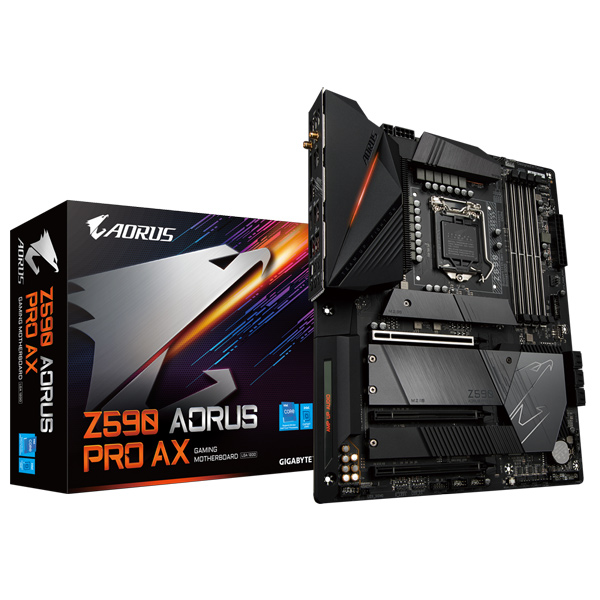

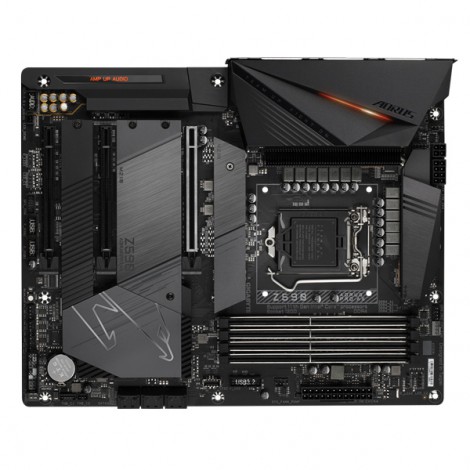

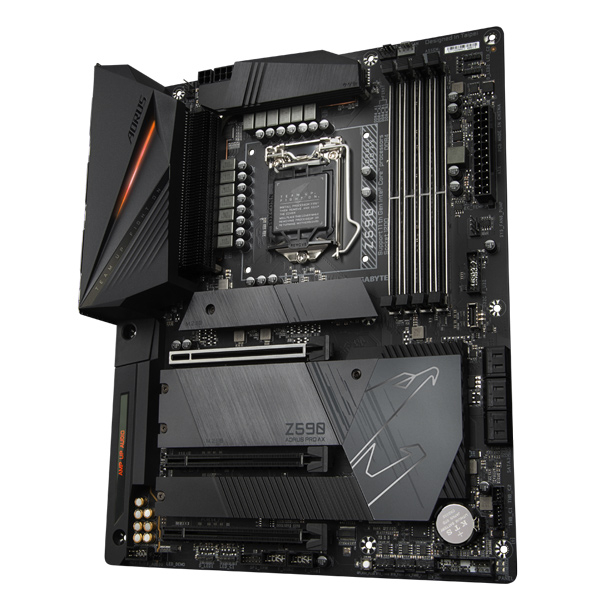

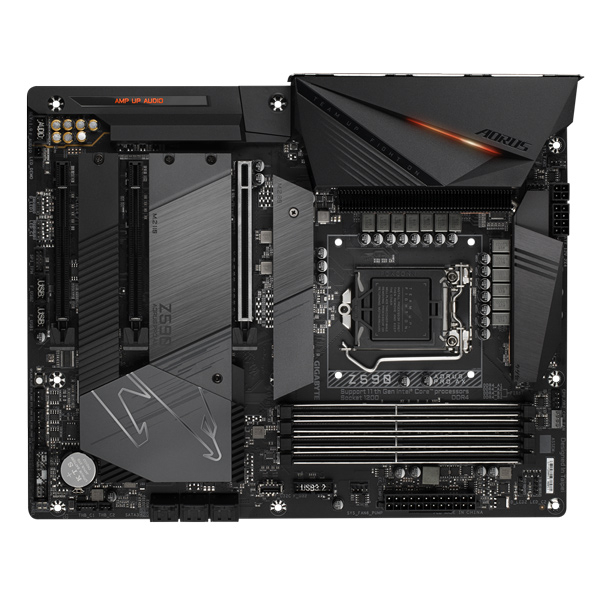

Mainboard Gigabyte Z590 AORUS PRO AX

Mã sản phẩm : tnm7223
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: Intel® Z590 Express Chipset
CPU hỗ trợ: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Socket: LGA1200
Lưu trữ: CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) * 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU) *Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

RAM	:	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	Intel® Z590 Express Chipset
Cổng xuất hình	:	1 x DisplayPort
Wifi	:	Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Kết nối mạng LAN	:	Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Âm thanh	:	Realtek® ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Giao Tiếp VGA	:	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)

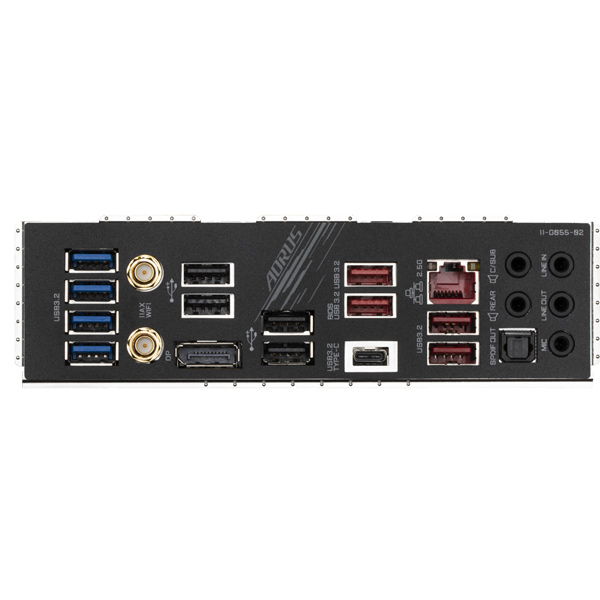

Số cổng USB	:	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header) Chipset+USB 3.2 Gen1 Hubs: 4 x USB 3.2 Gen1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	ATX Form Factor; 30.5cm x 24.4cm
Bảo hành	:	36 tháng
