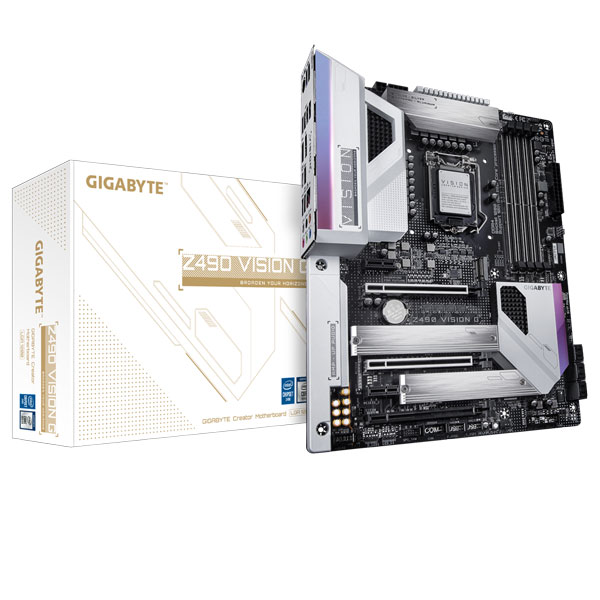

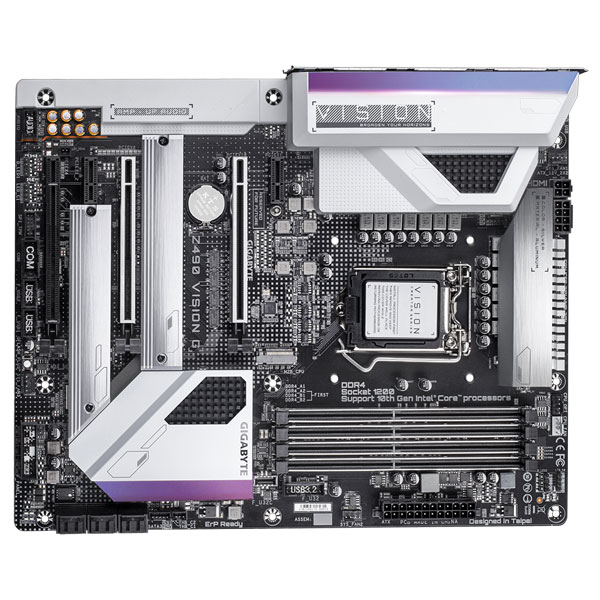

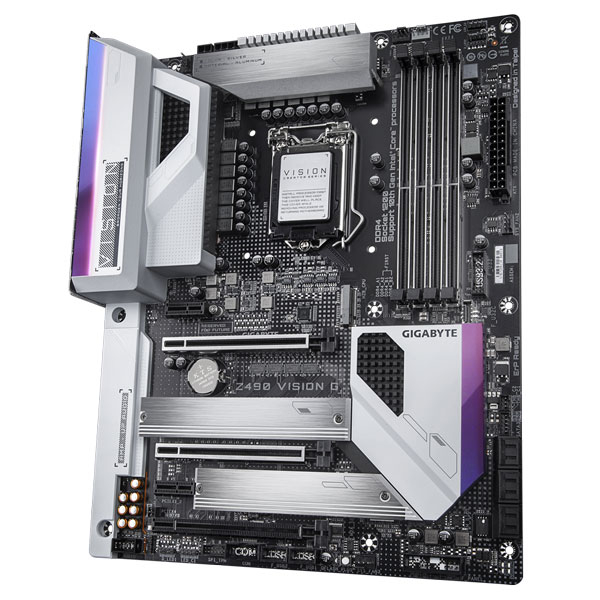

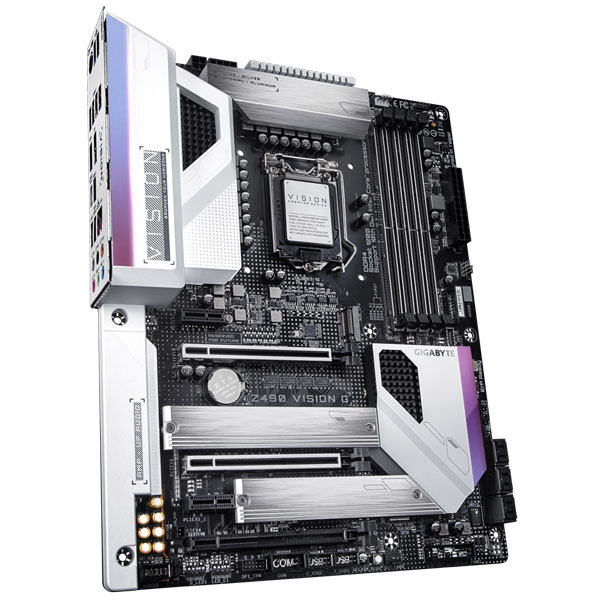

Mainboard GIGABYTE Z490 VISION G

Mã sản phẩm : tnm4781
Người dùng đánh giá:

Ngừng kinh doanh

Giao tiếp: Chipset: 3 x USB 3.2 Gen 2 ports on the back panel 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset: Intel® Z490 Express Chipset
Socket: 1200

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

CPU	:	Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU
RAM	:	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules * To support 3200 MHz, you must use XMP memory. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	Intel® Z490 Express Chipset
Khe cắm mở rộng	:	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Giao tiếp	:	Chipset: 3 x USB 3.2 Gen 2 ports on the back panel 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

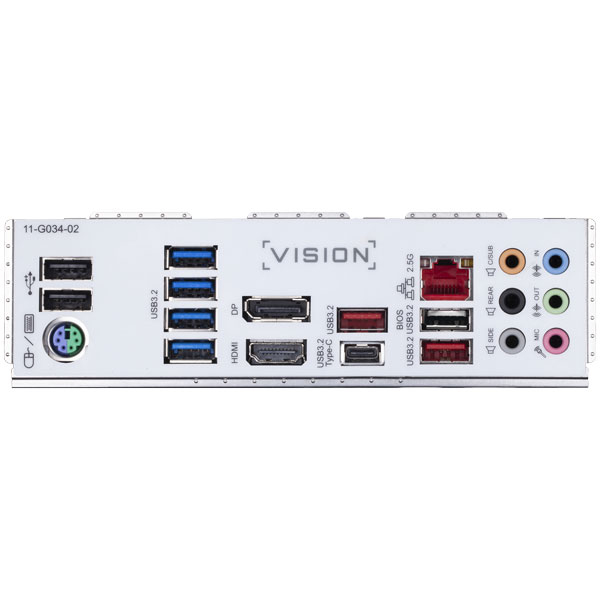

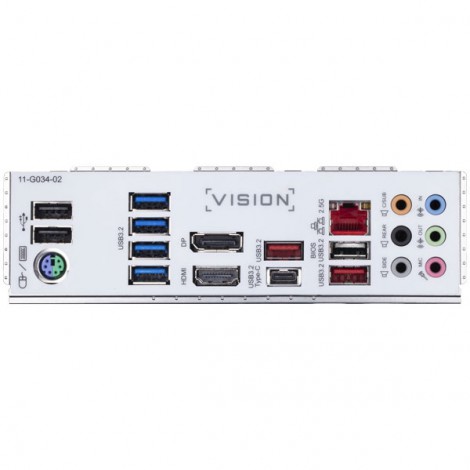

Cổng I/O phía sau	:	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 4 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 2 Type-A ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x RJ-45 port 6 x audio jacks
Cổng I/O ở trong	:	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper
Kết nối mạng LAN	:	Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit)
Âm thanh	:	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	ATX Form Factor; 30.5cm x 24.4cm
Bảo hành	:	36 tháng

Mô tả tính năng

Mainboard GIGABYTE Z490 VISION G hỗ trợ bộ xử lý dòng Intel ® Core ™ thế hệ thứ 10 để mang lại cho người dùng nhiều trải nghiệm tuyệt vời

Dung lượng bộ nhớ tối đa trên bo mạch chủ Z490 là 128GB Đối với người dùng luôn hết dung lượng bộ nhớ, giờ đây có nhiều băng thông hơn để sử dụng các ứng dụng được mượt mà hơn
