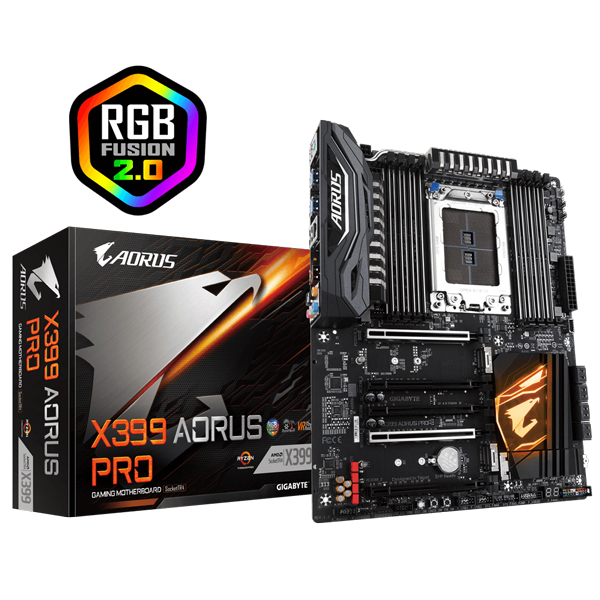

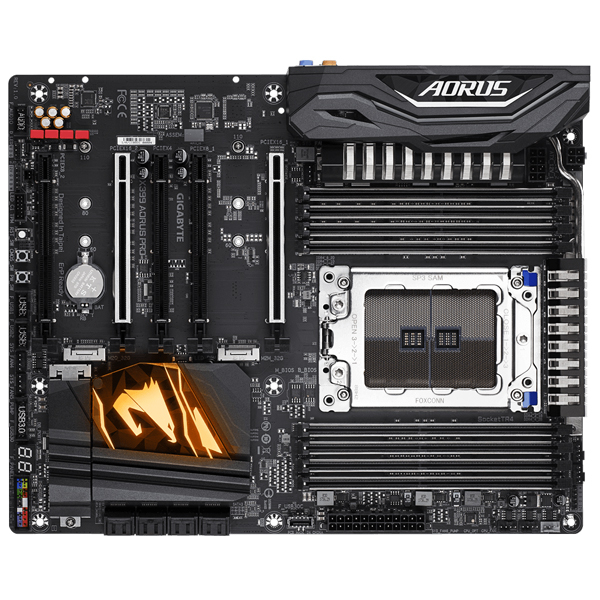

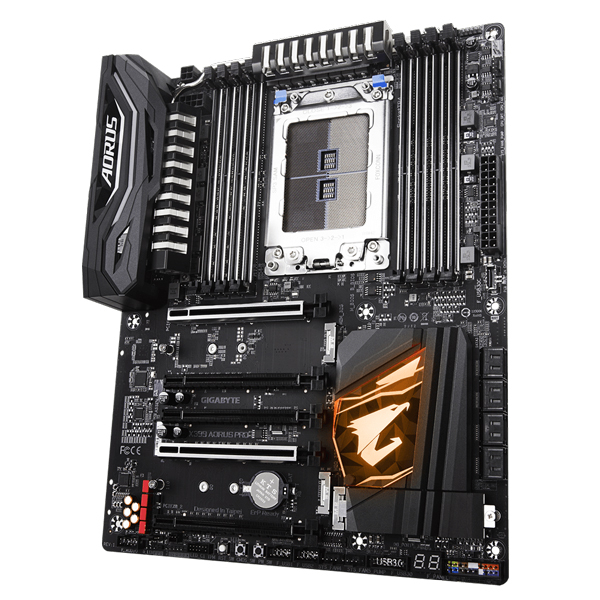

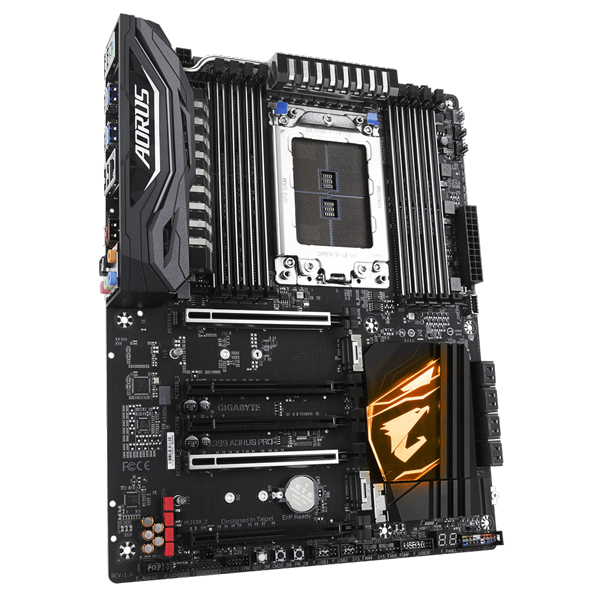

Mainboard Gigabyte X399 AORUS PRO

Mã sản phẩm : tnd41661
Người dùng đánh giá:

Ngừng kinh doanh

Giao tiếp: CPU: 8 x USB 3.1 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset: AMD X399
CPU: SocketTR4: AMD Ryzen™ Threadripper™ processor (Please refer "CPU Support List" for more information.)

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

CPU	:	SocketTR4: AMD Ryzen™ Threadripper™ processor (Please refer "CPU Support List" for more information.)
RAM	:	8 x DDR4 DIMM sockets supporting up to 128 GB of system memory Quad channel memory architecture Support for DDR4 3600+(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2800(O.C)/ 2667/ 2400/ 2133 MHz memory modules Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Loại Ram	:	8 x DDR4 DIMM sockets supporting up to 128 GB of system memory Quad channel memory architecture Support for DDR4 3600+(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2800(O.C)/ 2667/ 2400/ 2133 MHz memory modules Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	AMD X399

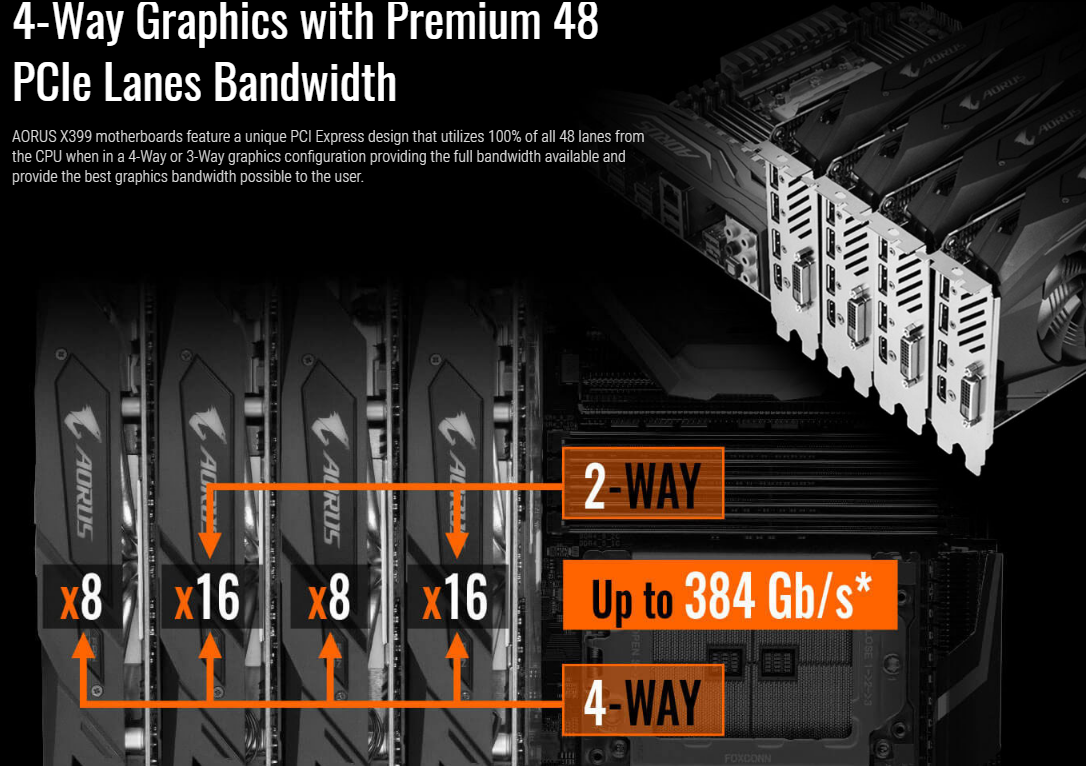

Khe cắm mở rộng	:	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Giao tiếp	:	CPU: 8 x USB 3.1 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers

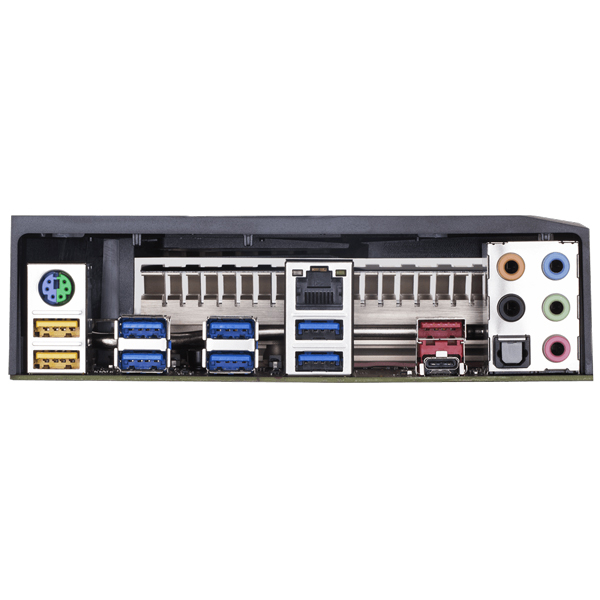

Cổng I/O phía sau	:	1 x PS/2 keyboard/mouse port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 8 x USB 3.1 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

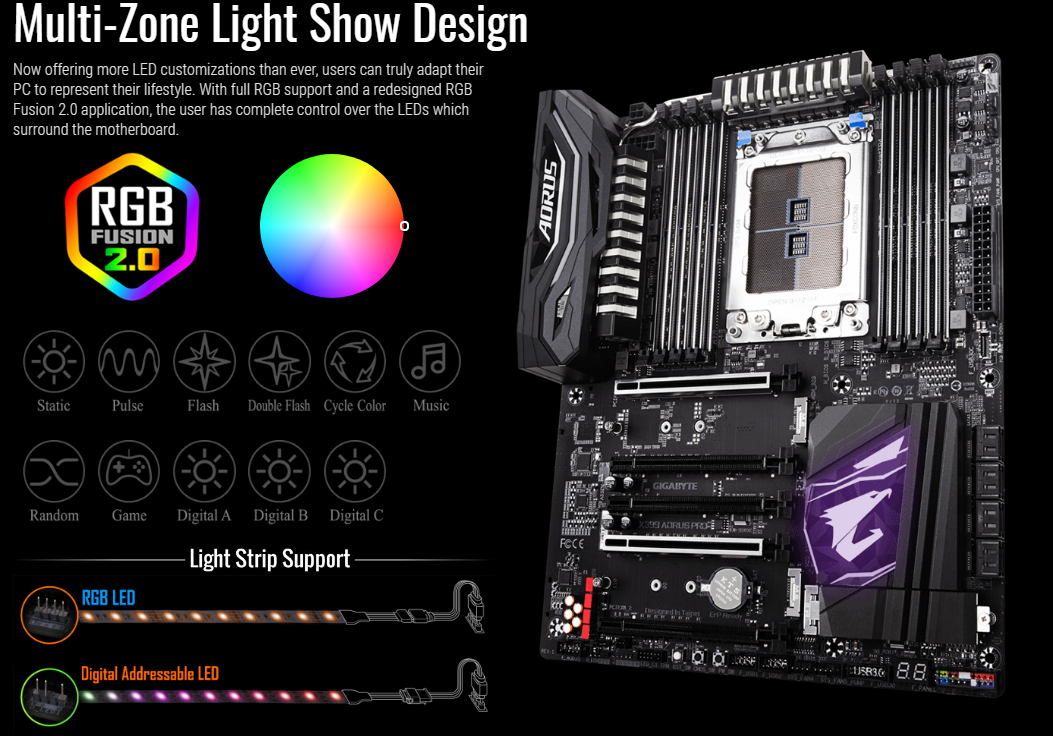

Cổng I/O ở trong	:	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x addressable LED strip header 1 x addressable LED strip power select jumper 2 x RGB (RGBW) LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ header with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 1 x Clear CMOS jumper
Kết nối mạng LAN	:	Intel® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	:	Realtek® ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	ATX Form Factor; 30.5cm x 24.4cm
Bảo hành	:	36 tháng
