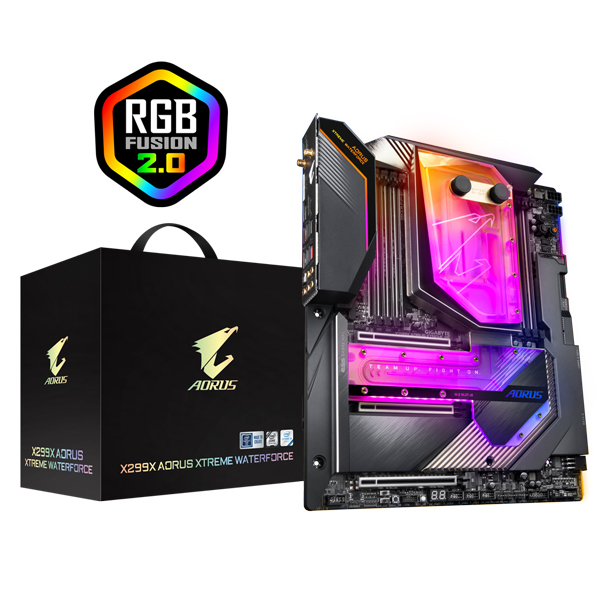

Mainboard Gigabyte X299X AORUS XTREME WATERFORCE

Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package L3 cache varies with CPU

Intel® Core™ X series 48-lane processors: 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules Intel® Core™ X series 44-lane/28-lane processors: 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules 4 channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Intel® X299 Express Chipset

Intel® Core™ X series 48-lane processors: 3 x PCI Express x16 slots, running at x16 Intel® Core™ X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX16_3) Intel® Core™ X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)

Chipset+Intel® Thunderbolt™3 Controller: 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support Chipset+2 ASMedia® USB 3.2 Gen 2 Controllers: 2 x USB Type-C™ ports with USB 3.2 Gen 2 support, available through the internal USB headers 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports available through the internal USB headers

2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support) 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x DisplayPort In ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x VGA_PW power connector 1 x CPU fan header 1 x water cooling CPU fan header 1 x water cooling kit CPU LED header (LED_CPU) 1 x water cooling kit Chipset LED header (LED_PCH) 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 3 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x power button 1 x OC Ignition button 1 x OC button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 2 x BIOS switches

Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.0

1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2)

2 x Realtek® ALC1220-VB codecs 2 x ESS SABRE9218 DAC chips High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Support for Windows 10 64-bit

XL-ATX Form Factor; 32.5cm x 27.5cm

36 tháng
