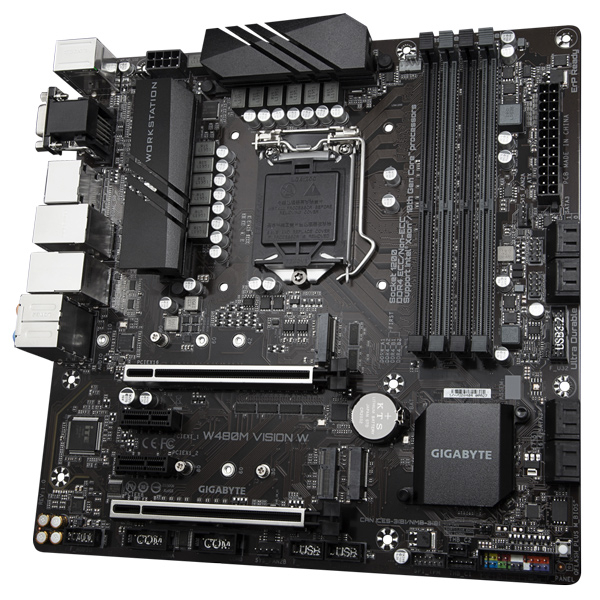

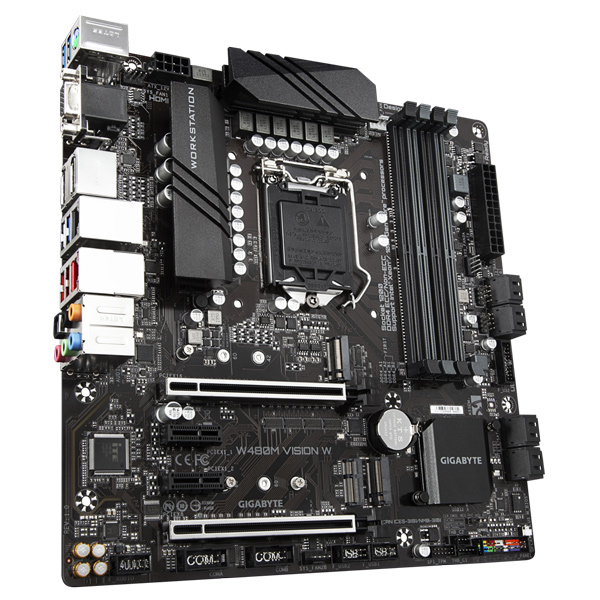

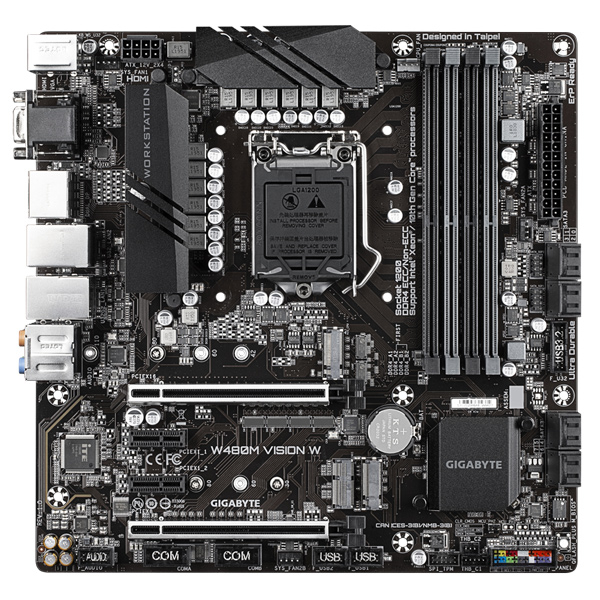

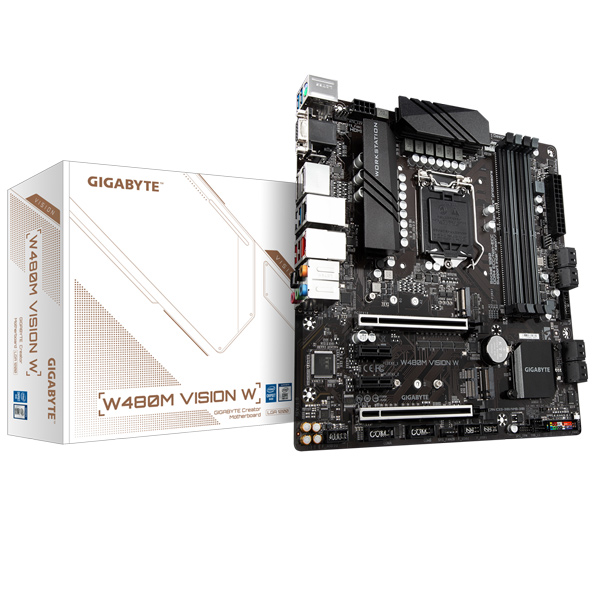

Mainboard Gigabyte W480M VISION W

Mã sản phẩm : tnm7249
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: Intel® W480 Express Chipset
CPU hỗ trợ: LGA1200 package: Intel® Xeon® W series processors 10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors L3 cache varies with CPU
Socket: LGA1200
Lưu trữ: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

RAM	:	Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors: Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium® / Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * To support ECC, you must install an Intel® Xeon® processor. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	Intel® W480 Express Chipset
Socket	:	LGA1200

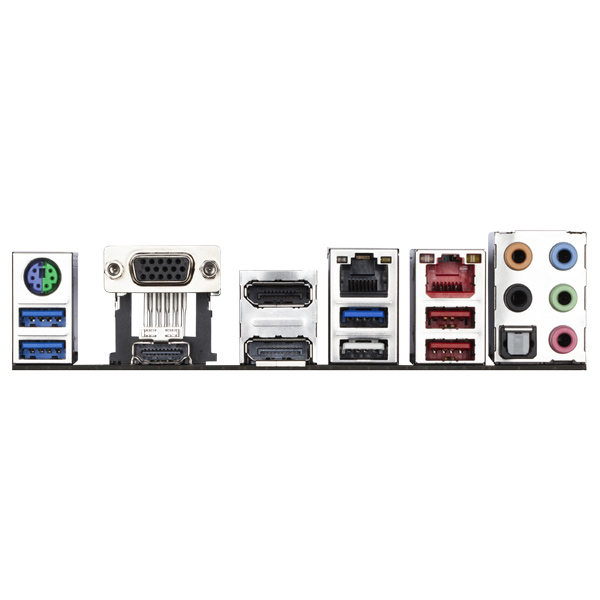

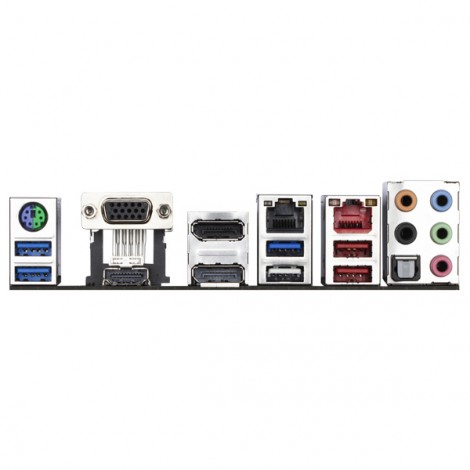

Cổng xuất hình	:	1 x HDMI port, 2 x DisplayPorts
Âm thanh	:	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Giao Tiếp VGA	:	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) Supports up to ASPM L1.2 power management protocols.
Số cổng USB	:	Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	Micro ATX Form Factor; 24.4cm x 24.4cm
Bảo hành	:	36 tháng
