Mainboard Gigabyte TRX40 AORUS XTREME, tháng 04-2025

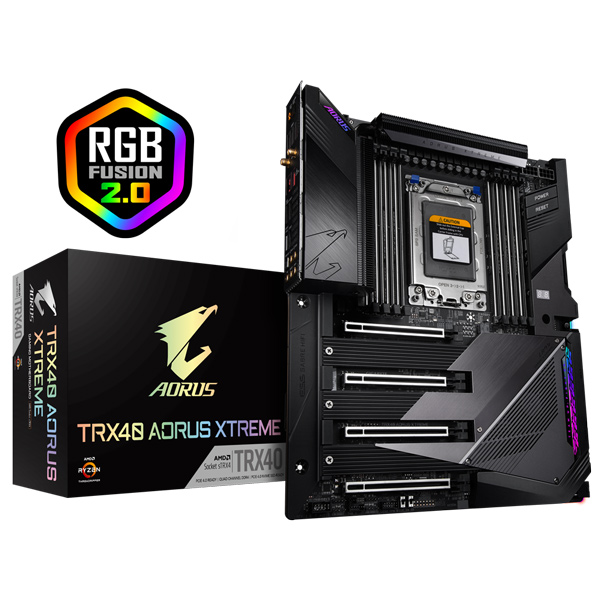

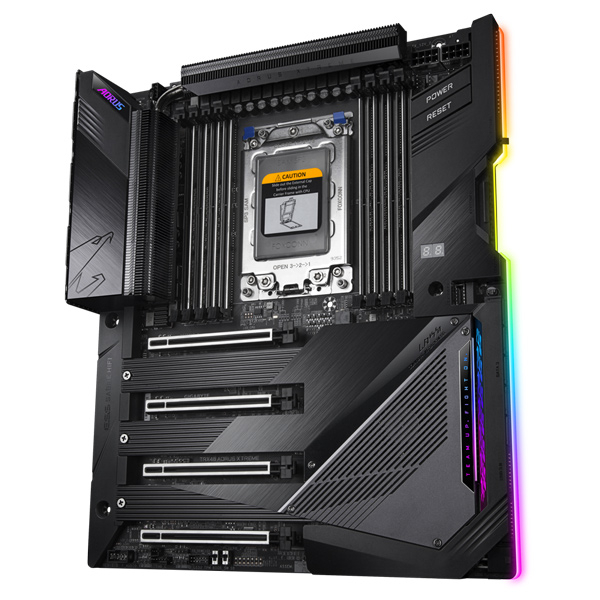

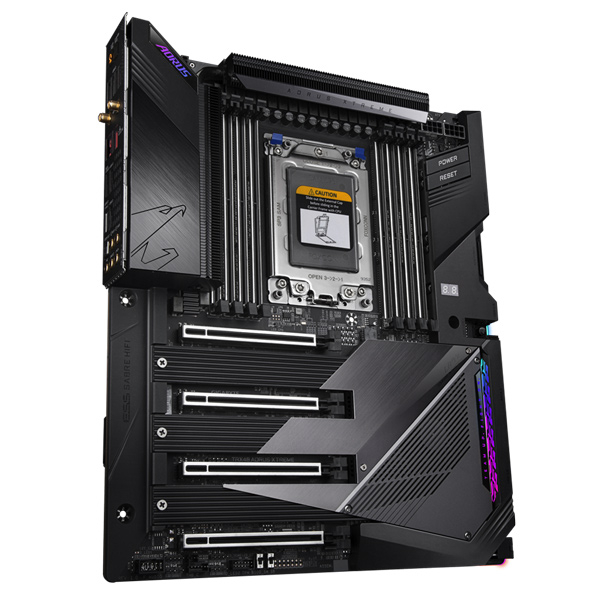

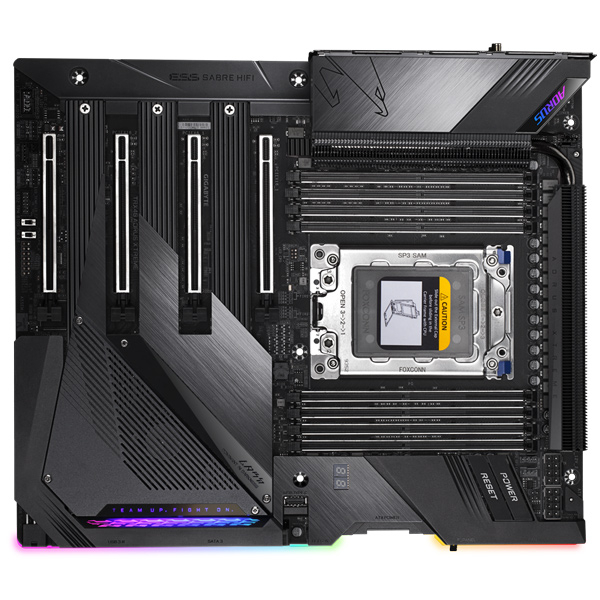

Mainboard Gigabyte TRX40 AORUS XTREME

Mã sản phẩm : tnm7248
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: AMD TRX40
CPU hỗ trợ: AMD Socket sTRX4: Support 3rd Generation AMD Ryzen™ Threadripper™ processors
Socket: sTRX4
Lưu trữ: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SOCKET) 8 x SATA 6Gb/s connectors (SATA3 0~7) * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Support for RAID 0, RAID 1, and RAID 10 ASMedia® SATA 6Gb/s Controller: 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

RAM	:	8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Quad Channel memory architecture Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	AMD TRX40
Socket	:	sTRX4
Wifi	:	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Bluetooth	:	BLUETOOTH 5.0
Kết nối mạng LAN	:	Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Âm thanh	:	Realtek® ALC4050H codec+Realtek® ALC1220-VB codec (rear panel audio) Realtek® ALC4050H codec+ESS SABRE9218 DAC (front panel audio) Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Giao Tiếp VGA	:	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)

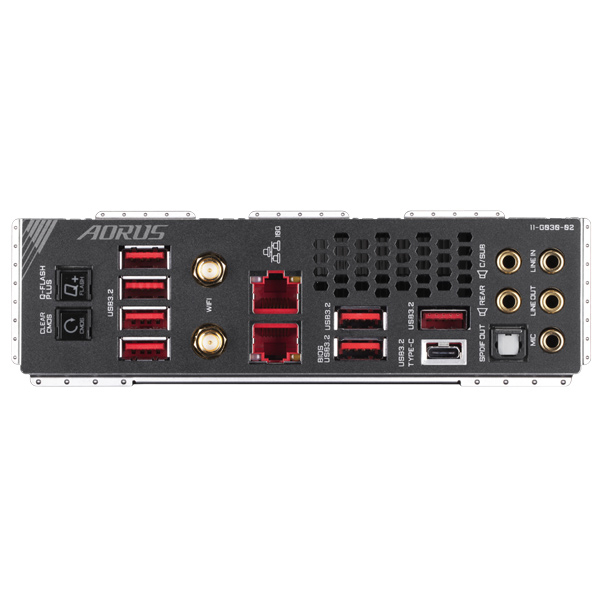

Số cổng USB	:	CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extention cable) Chipset+ASMedia® USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	XL-ATX Form Factor; 32.5cm x 27.5cm
Bảo hành	:	36 tháng
