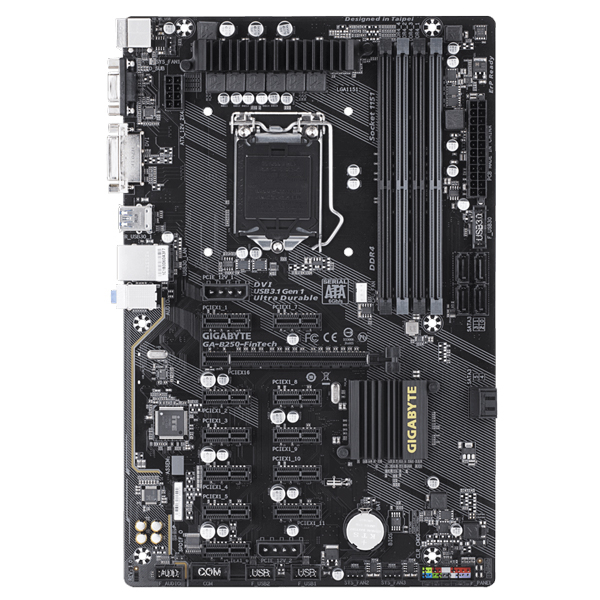

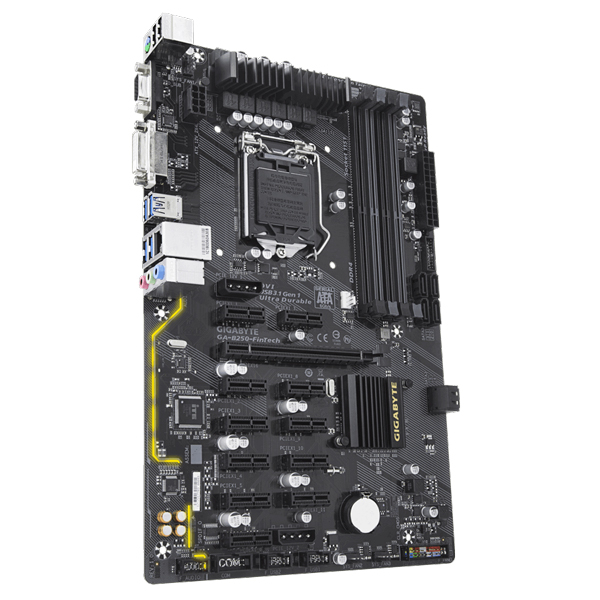

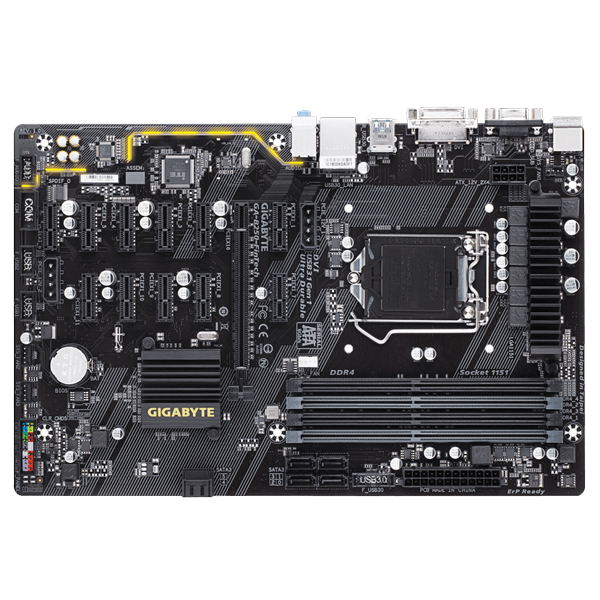

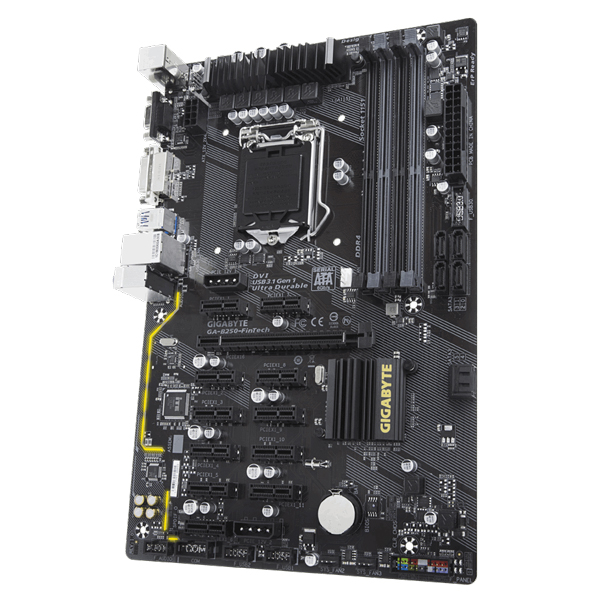

Mainboard Gigabyte GA-B250-FinTech

Mã sản phẩm : tnd9702
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: Intel® B250 Express Chipset
CPU hỗ trợ: Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

CPU	:	Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
RAM	:	x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th Generation processor.
Chipset	:	Intel® B250 Express Chipset
Khe cắm mở rộng	:	x PCI Express x16 slot, running at x16 11 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) * When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices.
Giao tiếp	:	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

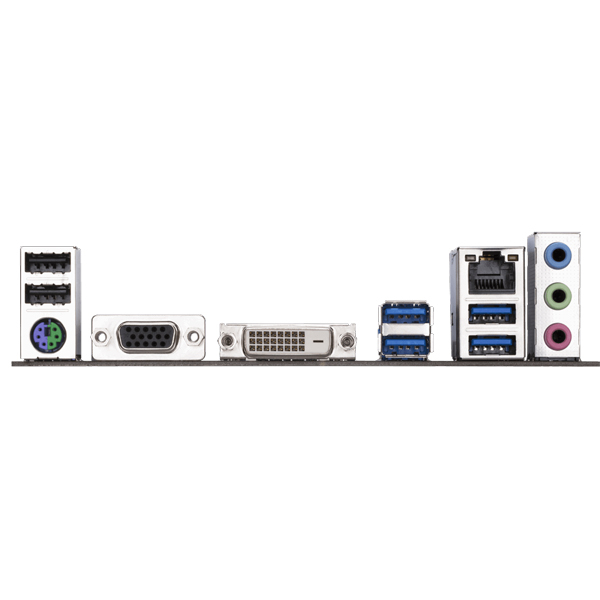

Cổng I/O phía sau	:	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	:	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x PCIe power connectors 1 x CPU fan header 3 x system fan headers 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
Kết nối mạng LAN	:	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	:	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Hệ điều hành hỗ trợ	:	Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Kích thước	:	ATX Form Factor; 30.5cm x 20.0cm
Bảo hành	:	36 tháng

Mô tả tính năng

The GIGABYTE B250-FinTech not only offers double the GPU support than standard motherboards but at the same time saves you money. Get the same mining performance without having to pay extra money for a second setup. Paying extra money for a second CPU, motherboard, HDD / SDD and memory kit can be costly. That's what makes the GIGABYTE B250-FinTech the ideal choice for miners!

Mining racks are an open-case environment. They usually lack the support of Power ON/Reset buttons.
This GIGABYTE module adds Power-On and Reset button on your system making your mining experience smoother. Modern mining rigs require more than one power supply powering your system at the same time. With the GIGABYTE Power-On adapter you can now connect up to 3 different power supplies in the most simple way. A safer cheaper and easier way than ever before!
