Mainboard GIGABYTE B460M DS3H V2, tháng 01-2025

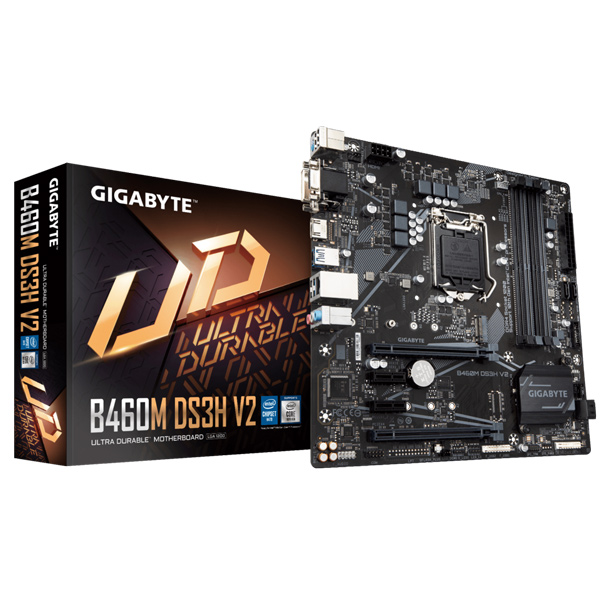

Mainboard GIGABYTE B460M DS3H V2

Mã sản phẩm : tnm4842
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: Intel® B460 Express Chipset
CPU hỗ trợ: Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU
Lưu trữ: 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

RAM	:	Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Loại Ram	:	Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	Intel®H470 Express Chipset
Cổng xuất hình	:	1 x D-Sub port, 1 x DVI-D port ,1 x HDMI port
Kết nối mạng LAN	:	Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Âm thanh	:	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Giao Tiếp VGA	:	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Số cổng USB	:	Chipset: 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kích thước	:	Micro ATX Form Factor; 24.4cm x 22.5cm
Bảo hành	:	36 tháng
