Mainboard ASUS ROG MAXIMUS XII EXTREME

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III

Intel® Z490

Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8)

Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)

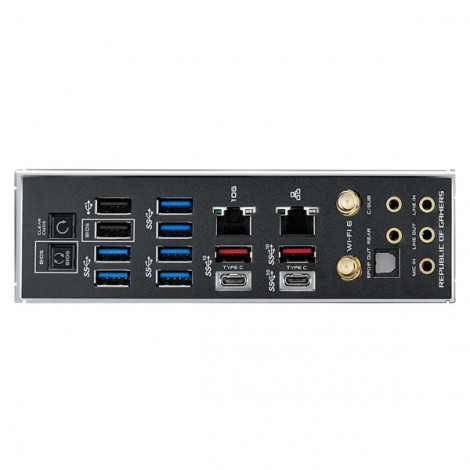

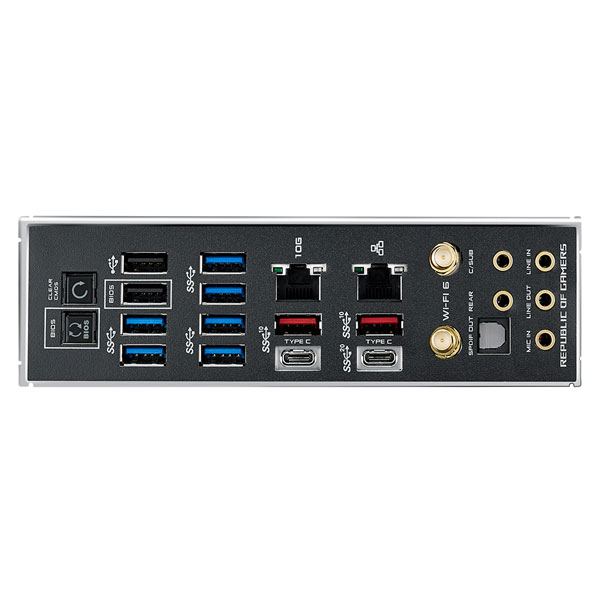

1 x LAN (2.5G) port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button

Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface

Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

36 tháng
